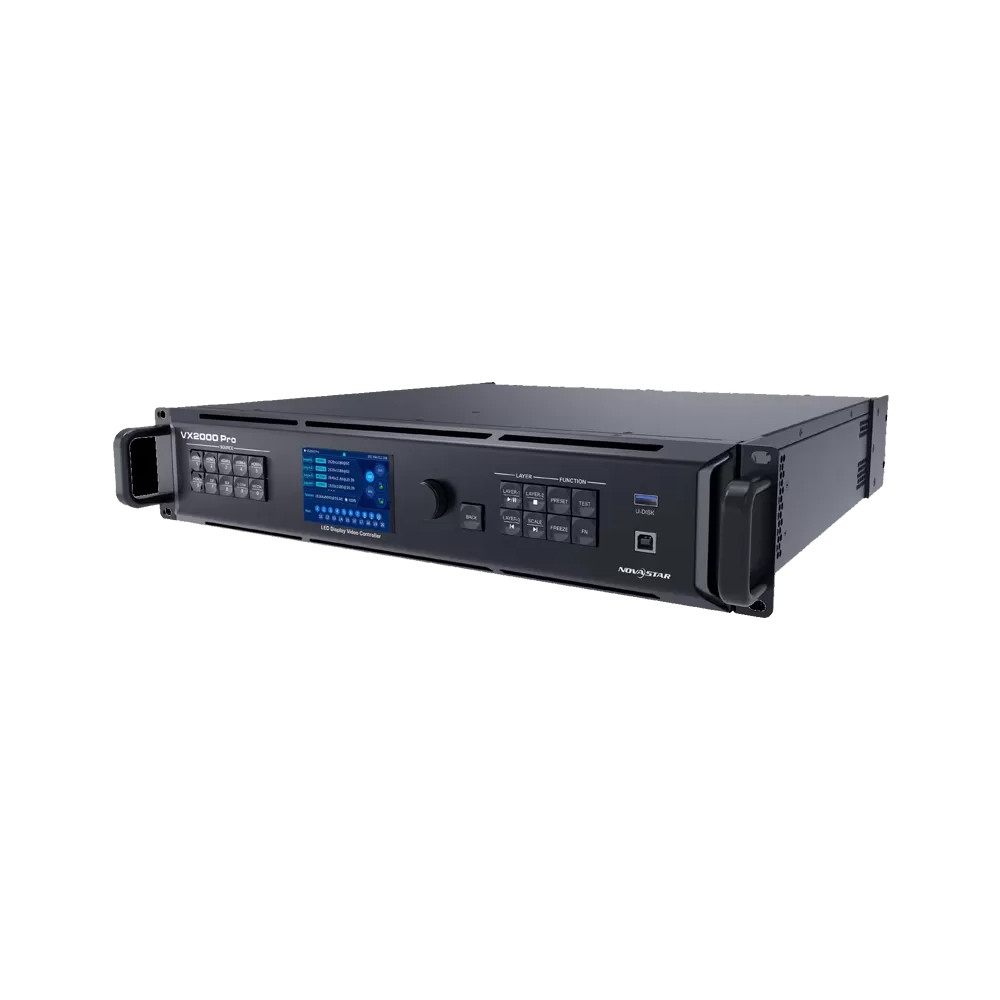

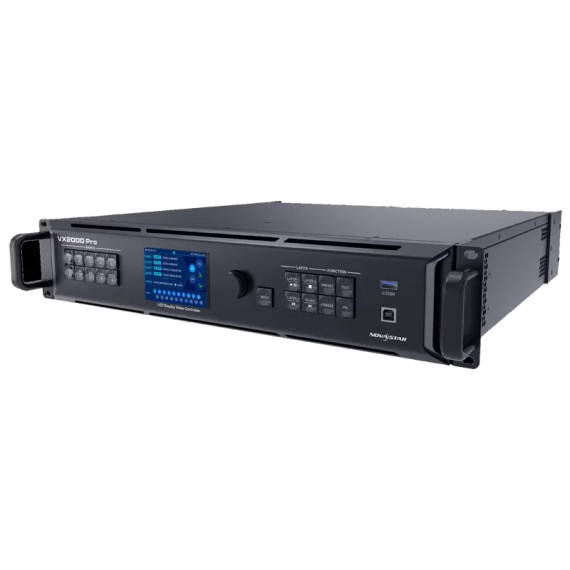

NovaStar VX2000 Pro All-in-One Controller (w/ Flight Case)

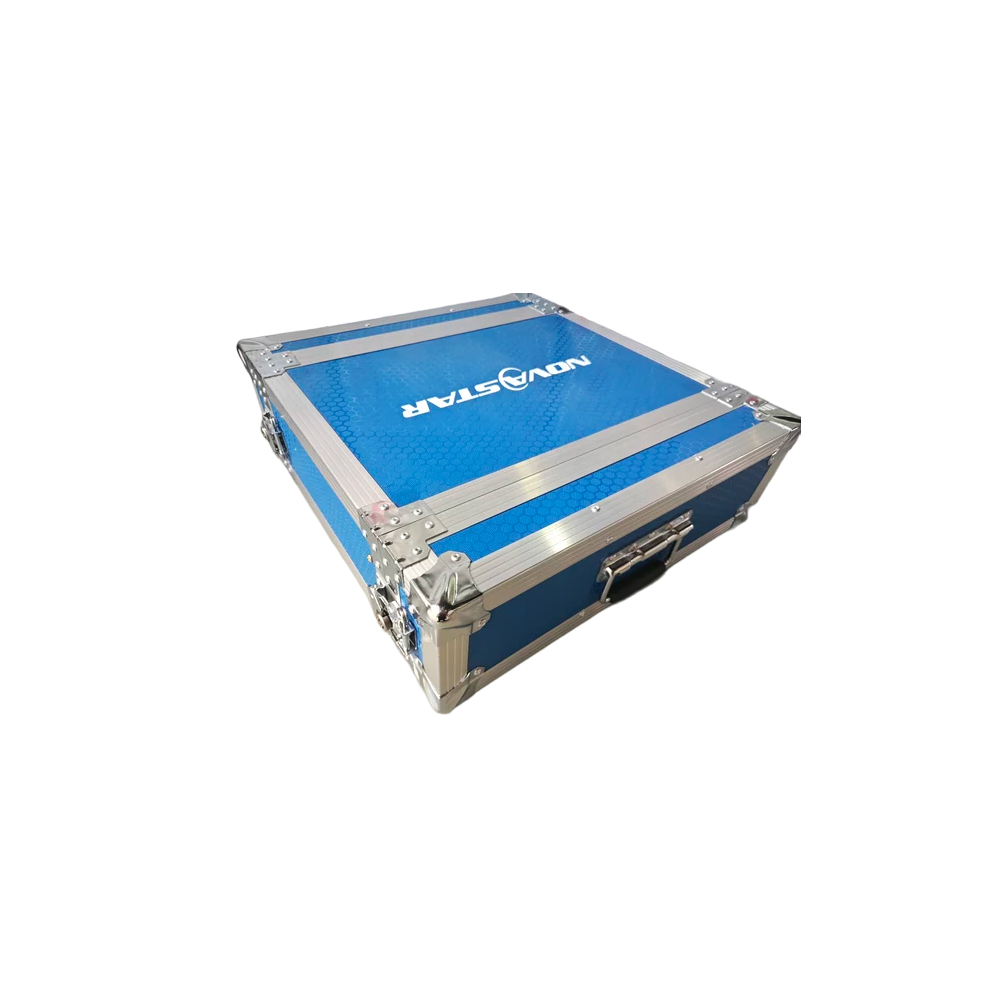

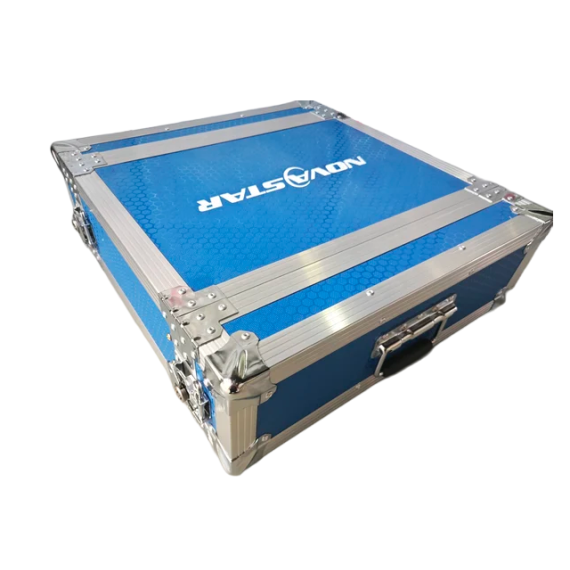

NovaStar VX2000 PRO is a professional-grade all-in-one LED video controller featuring multiple high-resolution input options including DP 1.2, HDMI 2.0/1.3, and 12G-SDI. It supports 4096×2160@60Hz input resolution and is designed for seamless integration into advanced LED display systems. Ideal for live events and installations requiring robust video processing and control. This product comes with controller installed in a Flight Case.
Varenummer:
VX2000PRO-FC
Merke:
| Model | VX400 | VX600 | VX1000 | VX2000 Pro |
| Loading Capacity (pixel) | 2600000 | 3900000 | 6500000 | 13000000 |
| Video Source Depth | 8bit | 8bit | 8bit | 8 / 10 / 12bit |
| Maximum Input | Max Width: 3840×648@60Hz Max Height: 800×2784@60Hz Min: 800×600@60Hz |
Max Width: 3840×648@60Hz Max Height: 800×2784@60Hz Min: 800×600@60Hz |
Max Width: 4092×1136@60Hz Max Height: 1060×3981@60Hz Min: 800×600@60Hz |
Max Width: 8192×1080@60Hz Max Height: 1080×8188@60Hz Min: 800×600@60Hz |
| Maximum Output | Max Width:10240 Max Height:8192 | Max Width:10240 Max Height: 8192 | Max Width:10240 Max Height: 8192 | Max Width: 16384 Max Height: 8192 |
| Video Input | HDMI1.3×2,DVI×1 3G-SDI×1 1×10G optical fiber port(OPT1) |
HDMI1.3×2, DVI×1 3G-SDI×1 1×10G optical fiber port(OPT1) |
HDMI1.4×2, DVI×2 3G-SDI×1, 1×10G optical fiber port(OPT1) |
HDMI2.0×2,HDMI1.3×4,DP1.2×1 12G SDI×1, 2×10G optical fiber port(OPT1,OPT2) |
| Output | Ethernet Port×4 HDMI1.3 LOOP×1 DVI LOOP×1 SDI LOOP×1 HDMI1.3×1 (Monitor) 1×10G optical fiber port(OPT2) |
Ethernet Port×6 HDMI1.3 LOOP×1 DVI LOOP×1 SDI LOOP×1 HDMI1.3×1 (Monitor) 1×10G optical fiber port(OPT2) |
Ethernet Port×10 HDMI1.4 LOOP×1 DVI LOOP×1 SDI LOOP×1 HDMI1.3×1 (Monitor) 1×10G optical fiber port(OPT2) |
Ethernet Port×20 10G Fiber Output×4 12G SDI LOOP×1 HDMI1.3×1 (Monitor) |
| 3D Connector | × | × | × | √ |
| Genlock | √ | √ | √ | √ |
| Splicing Loading Capacity | √ | √ | √ | √ |
| Max Layers | 2 | 3 | 3 | 12 |
| Max Presets | 10 | 10 | 10 | 256 |
| Knob Brightness Adjustment | √ | √ | √ | √ |
| USB Playback | × | × | × | √ |
| Working Mode | Video controller/Bypass/Fiber converter | Video controller/Bypass/Fiber converter | Video controller/Bypass/Fiber converter | Video controller/Bypass/Fiber converter |
| Control Method | USB, TCP/IP | USB, TCP/IP | USB, TCP/IP | USB, TCP/IP, RS232 |
| Control Protocol | TCP/IP | TCP/IP | TCP/IP | TCP/IP, RS232 |
| Control Software | NovaLCT / V-Can / VICP | NovaLCT / V-Can / VICP | NovaLCT / V-Can / VICP | NovaLCT / Unico Web / VICP |
