H Series I/O Cards
I/O Cards for H Series
H Series I/O Cards
NovaStar
2x DP 1.1 – 2x 4 K @30 Hz
The H Series 2x DP 1.1 Input Card is an input card for the H Series H2/H5/H9/H15 Video Wall Splicers. It is HDCP 1.3 compliant. It accepts two DP 1.1 signals and supports 8- and 10-bit video...
H Series I/O Cards
NovaStar
2x HDMI 2.0 - 2 x 4K @60 Hz
The H Series 2x HDMI 2.0 Input Card is an input card for the H Series H2/H5/H9/H15/H20 Video Wall Splicers. It is HDCP 2.2 compliant and backward compatible with HDMI 1.4 and HDMI 1.3. The...
H Series I/O Cards
NovaStar
Drives up to 13,000,000 pixels
The H Series 20x RJ45 Sending Card is a 4 K sending card for the H Series H2/H5/H9/H15/H20 Video Wall Splicers. It has 20 RJ45 Gigabit Ethernet outputs. Each output can drive up to...
H Series I/O Cards
NovaStar
Single and Dual Link
The H Series 4x DVI Input Card is an input card for the H Series H2/H5/H9/H15/H20 Video Wall Splicers. It is HDCP 1.4 compliant and supports 10-bit input video signals. In Single link mode it...
H Series I/O Cards
NovaStar
1x HDMI 2.0 or 1x DP 1.2
The H Series 1x HDMI 2.0 / 1x DP 1.2 Input Card is an input card for the H Series H2/H5/H9/H15/20 Video Wall Splicers. It is HDCP 2.2 compliant. It accepts one HDMI 2.0 signal OR one DP 1.2...
H Series I/O Cards
NovaStar
For Streaming Video Sources
The H Series 2x RJ45 IP Input Card is an input card for the H Series H2/H5/H9/H15/H20 Video Wall Splicers. It is DHCP compliant. It accepts RTSP, GB28181, and ONVIF and supports H.264 as...
H Series I/O Cards
NovaStar
2x HDMI 2.0 (1 x duplicate) - 1 x 4K @60 Hz
The H Series 1x HDMI 2.0 Output Card is an output card for the H Series H2/H5/H9/H15/H20 Video Wall Splicers. It has two HDMI 2.0 outputs – please note that output 2 offers...
H Series I/O Cards
NovaStar
Connect to network or monitor
The H Series 2x RJ45 plus 1x HDMI 1.3 Preview Card is an output card for the H Series H2/H5/H9/H15/H20 Video Wall Splicers. It has two RJ45 Gigabit Ethernet outputs that connect to your...
H Series I/O Cards
NovaStar
he Backup Power Supply for H Series H2/H5/H9 provides a redundant power supply which ensures continuous operation of the system if the primary power supply might fail.
H Series I/O Cards
NovaStar
Two group inputs, each group with 1x HDMI 2.0 and 1x DP1.2 connector Only one connector of each group can be used each time. Set to use which connector on the Web page. The default option is HDMI 2.0 connector.
Does...
H Series I/O Cards
NovaStar
1x HDMI 2.0 - 1x 4K @60 Hz
The H Series 1x HDMI 2.0 Input Card is an input card for the H Series H2/H5/H9/H15/H20 Video Wall Splicers. It is HDCP 2.2 compliant and backward compatible with HDMI 1.4 and HDMI 1.3. The...
H Series I/O Cards
NovaStar
The H Series 16x RJ45 plus 2x Fibre Sending Card is a 4 K sending card for the H Series H2/H5/H9/H15 Video Wall Splicers. It has 16 RJ45 Gigabit Ethernet outputs. Each output can drive up to 650,000 pixels in 8-bit or...
H Series I/O Cards
NovaStar
The H Series 4x Fibre Sending Card is a 4K sending card for the H Series H2/H5/H9/H15 Video Wall Splicers that is compatible with the CVT10S and CVT4KS fibre converters. It has four 10G optical output ports. Each...
H Series I/O Cards
NovaStar
4x Full HD @ 60 Hz
The H Series 4x 3G-SDI Input Card is an input card for the H Series H2/H5/H9/H15 Video Wall Splicers. Each connector supports resolutions of up to 1920x1080 @60 Hz and 1080i/576i/480i...
H Series I/O Cards
NovaStar
4x HDMI 1.4
Novastar’s H Series 4x HDMI Output Card adds four HDMI 1.4 outputs to the H2/H5/H9/H15 Video Wall Splicers. When using all outputs individually, each one can support up to 2048 x 1152 at 60 Hz. If outputs...
H Series I/O Cards
NovaStar
4x HDMI 1.3 or 2x HDMI 1.4
The H Series 4x HDMI Input Card is an input card for the H Series H2/H5/H9/H15/H20 Video Wall Splicers. It is HDCP 1.4 compliant and supports 10-bit input video signals. If four HDMI...
H Series I/O Cards
NovaStar
Novastar’s H Series 4x DVI Output Card adds four SL-DVI outputs to the H2/H5/H9/H15/H20 Video Wall Splicers. As a single link output, all four connectors are available for output and can support the maximum resolution...
H Series I/O Cards
NovaStar
The NovaStar H Series Audio Card is designed to complement NovaStar display systems by providing high-quality audio support, compatible specifically with H Series LED controllers. It supports a wide range of audio...
H Series I/O Cards
NovaStar

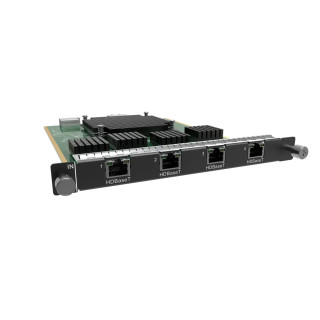

The Novastar H Series 4x HDBaseT output card has four RJ45 Gigabit Ethernet ports that support single and dual link output modes and accompanied audio. In single link mode, all four connectors are available for output...
H Series I/O Cards
NovaStar
Up to 4096x2160 @ 60 Hz
The H Series 1x 12G-SDI Input Card is an input card for the H Series H2/H5/H9/H15 Video Wall Splicers. It supports resolutions of up to 4096x2160 @60 Hz and 1080i/576i/480i de-interlacing...
H Series I/O Cards
NovaStar
The H Series 2x RJ45 IP Input Card is an input card for the H Series H2/H5/H9/H15 Video Wall Splicers. It is DHCP compliant. It accepts RTSP, GB28181, and ONVIF and supports H.264 as well as H.265 codecs. It is...
H Series I/O Cards
NovaStar
The H Series 1x 12G-SDI Input Card is an input card for the H Series H2/H5/H9/H15 Video Wall Splicers. It supports resolutions of up to 4096x2160 @60 Hz and 1080i/576i/480i de-interlacing processing. It supports...
