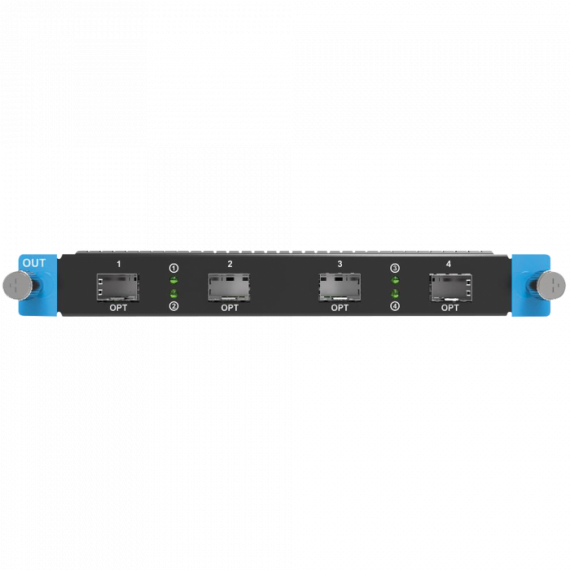

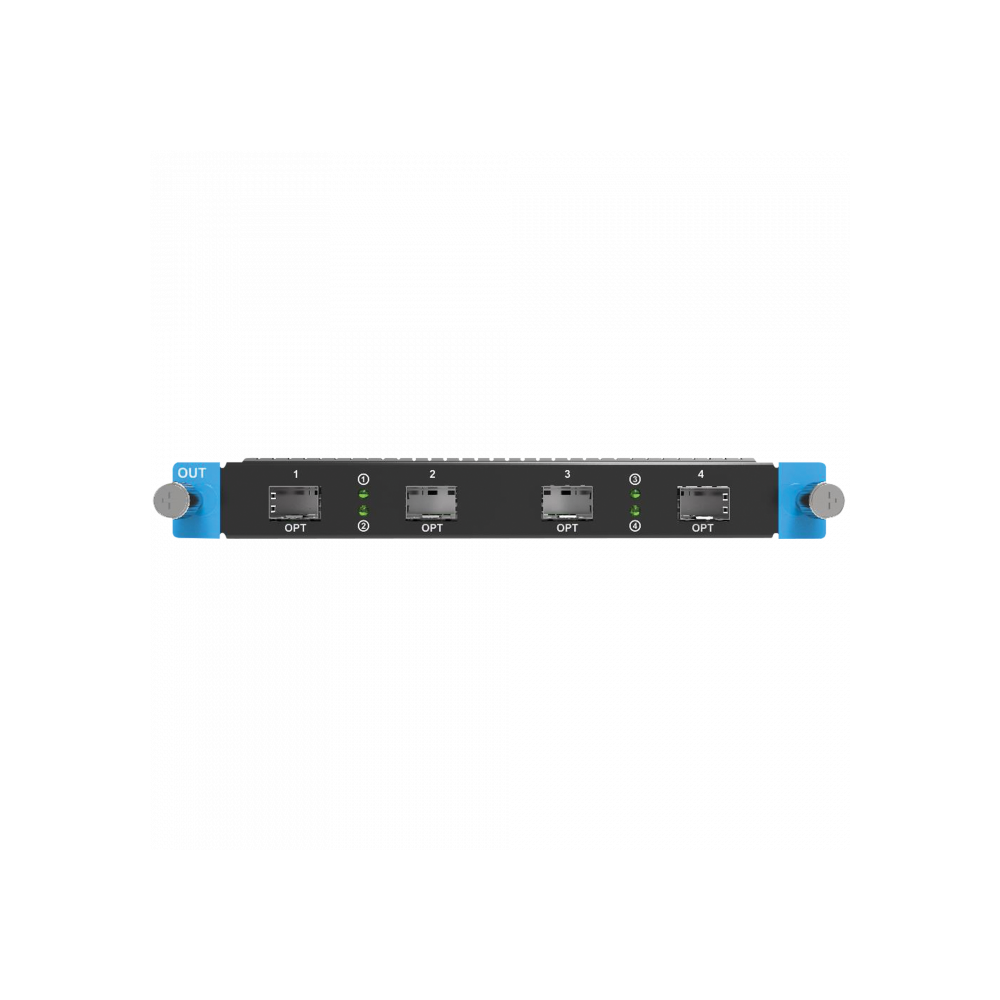

The NovaStar MX_4×10G_Fiber Output Card is a high-performance video output module designed for use with NovaStar's MX Series controllers MX6000 Pro

Les merShow less
Varenummer:
MX_4×10G_Fiber outp
Beskrivelse

Key features:

  • Ports: 4 × 10G SFP+ optical ports.
  • Fiber Support: Compatible with single-mode and multi-mode optical fiber modules.
  • Transmission Distance: Up to 10 km.
  • Bandwidth: Each port supports the equivalent of 10 × 1G Ethernet outputs, totaling up to 40G bandwidth per card.
  • Max Load Capacity: Up to 17,694,720 pixels per card at 8/10/12bit @ 60Hz
  • Operating Temperature: –10°C to +45°C.
  • Humidity: 0% to 80% RH (non-condensing).
  • Power Consumption: ~50W.
      Les merShow less
      Produktdetaljer
      MX_4×10G_Fiber outp
