Novastar MX Series 4 x 10G Fiber output card
Novastar MX Series 4 x 10G Fiber output card

Novastar MX Series 4 x 10G Fiber output card

NovaStar MX Series DP input Card for MX2000/6000
Novastar MX Series 2 x Displayport 1.4 input card

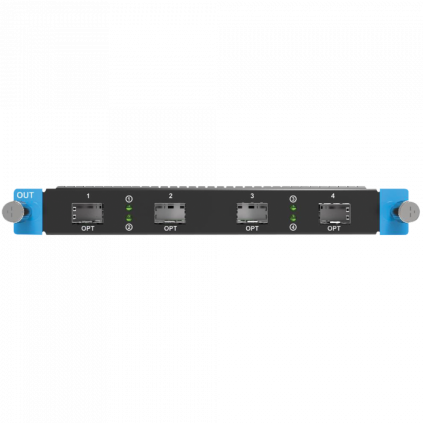

The Novastar MX Series 4x 10G Fiber Output Card is a fibre sending card for the Novastar MX Series main frames. It has four 10G optical output ports that support single and multi-mode fibre modules and a maximum transmission distance of 10 km. Each port has a load capacity of 10 1G Ethernet ports, and a single card supports up to 40x Ethernet port outputs. A single 1G Ethernet port has a maximum load of 659,722 pixels at 8-bit/60 Hz, which translates to 26,388,880 pixels for 40 1G ports. At 10/12-bit and 60 Hz, this drops to 329,861 pixels per port and 13,194,440 pixels in total.

Note: the required SFP modules are not included and must be purchased separately.

Les merShow less
Varenummer:
MX_4x10G_Fiber-outp
Merke:
NovaStar
Beskrivelse

Here are some key features of the NovaStar MX Series 4 x 10G Fiber Output Card:

  • High Bandwidth Transmission: Supports four independent 10G fiber output ports, allowing for high-speed data transmission with a total bandwidth of up to 40 Gbps.
  • Extended Distance Coverage: Capable of transmitting signals over long distances, up to 10 km, without losing quality.
  • High-Quality Video Output: Delivers superior image quality, supporting high resolutions including HD and 4K.
  • Advanced Error Correction: Features advanced error correction algorithms to maintain signal integrity and minimize data loss during transmission.
  • Signal Redundancy: Includes built-in redundancy features to ensure continuous operation and reliability, even in the event of a signal failure.
  • Seamless Integration: Compatible with various NovaStar LED controllers, facilitating easy integration into existing systems and configurations.
  • User-Friendly Configuration: Supports user-friendly setup and management through the NovaStar software interface.
  • Robust Build Quality: Designed for durability and stability in demanding environments.
  • Real-Time Monitoring: Offers real-time monitoring capabilities, allowing users to track signal status and performance metrics for proactive maintenance.
